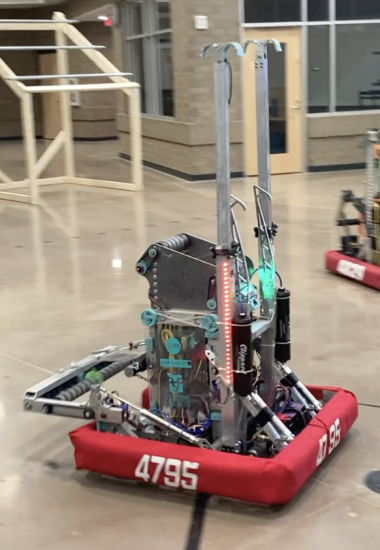

2x Strips of RGB Addressable LED's
The silicone protective layer started to flake off, didn't affect the performance of the LED's

Github
LED.java

Cool Wave!

 public void wave(HSVPreset color, double time) {
    for (var i = 0; i < buffer.getLength(); i++) {
      double v = 140 + Math.sin((i - pixelOffset) / (double) buffer.getLength() * Math.PI * 2) * 115;
      buffer.setHSV(i, color.h, color.v, (int) v);
    }

    if (timer.get() < time) {
      if (pixelOffset == buffer.getLength() - 1) {
        pixelOffset = 0;
      }
    } else {
      pixelOffset += 1;
      timer.reset();
    }

    led.setData(buffer);
    led.start();
  }

Purple Top-Bottom Animation: Indicates the shooter RPM's, solid purple when up to speed
Purple Wave Animation: Indicates that the climber is active and is moving up or down
Solid Alliance Color: The default state of the LED's, no balls detected and no climbing
Half Green: Indicates that a ball is in the top position of the tower
Full Green: Indicates that two balls are in their positions in the tower
